*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.
Part #: 206-16 | Manufacturer: Parker |
Price/UOM :
$25.54
|
Availability : 3110 In Stock |
UOM: FT |
Description: |

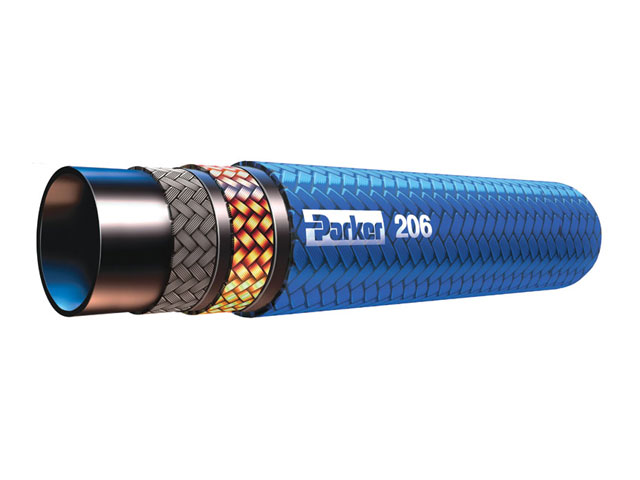

General purpose air-brake hose for use with petroleum base hydraulic fluids and lubricating oils, diesel fuels and antifreeze solutions. Inner Tube: PKR. Reinforcement: One fiber braid and one steel braid. Cover: Fiber braid blue.
|
Inner Diameter: | 0.875 Inch |
Working Pressure: | 800 PSI (60 bar) |
Material: | Rubber |
Mating Fitting Series: | 26, 20, 22 |
UOM: | FT |
Hose Category: | Transportation |
Application: | Transportation |
Series: | 206 |
Hose Pressure Range: | Low |
Inch/Metric: | Inch |
Working Pressure Range: | 500 to 999 PSI (34 to 69 bar |
Inner Diameter Inch/mm: | Inch |
Mating End Fitting Series: | 26, 20, 22 |
Parker Division: | Hose Products |
Parker Group: | Fluid Connector |
Specification: | SAE 100R5 SAE J1402 AII, D.O.T. FMVSS 106 AII - AIR BRAKE |
Application: | Transportation |
Specific Application: | Air brake systems |
Part Number Tags: | N/A |
