| Part #: 3626 10 00 | Manufacturer: Parker |
|
Price/UOM :
$5.81
|
Availability : Backordered |
| UOM: EA |
| Description: |

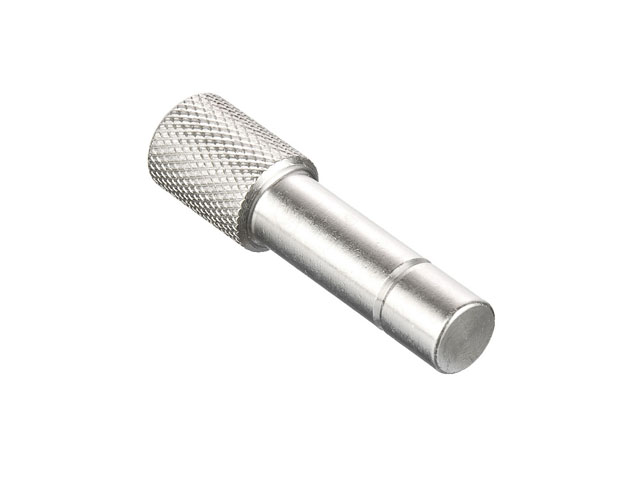

Parker Legris LF3600 Series Metric Plug, Nickel Plated Brass Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
|
| Outer Diameter 1: | 10 mm |
| UOM: | EA |
| Trade Name: | Legris |
| Series: | Legris LF3600 |
| Material: | Nickel Plated Brass |
| Configuration Type: | Tube to Tube |
| Configuration Sub-Type: | Plug |
| Outer Diameter 1 Inch/mm: | mm |
| Inch/Metric: | Metric |
| Pressure Range: | 7 to 290 psi |
| Material - Seal: | FKM Fluoroelastomer |
| Operating Temperature: | -4˚ to +302˚F |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Parker Group: | Fluid Connector |
| Part Number Tags: | 639PLM-10M |
