*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.

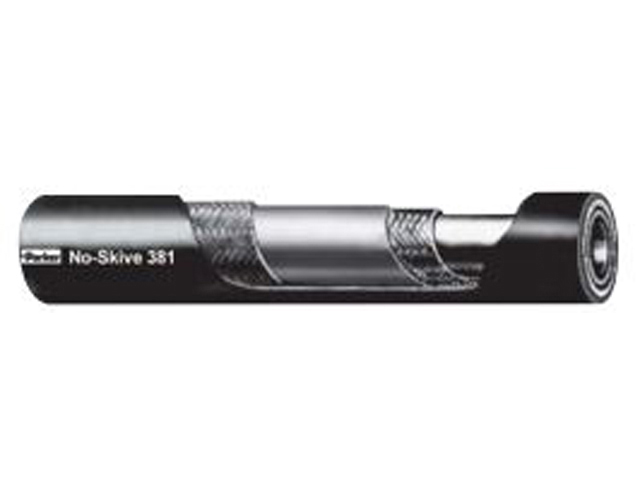

Part #: 381-10 | Manufacturer: Parker |
Price/UOM :
$23.09
|
Availability : 59 In Stock |
UOM: FT |
Description: |
Medium pressure hydraulic hose for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Synthetic rubber. Reinforcement: Two braids steel wire. Cover: Synthetic rubber, MSHA accepted.
|
Inner Diameter: | 0.625 Inch |
Working Pressure: | 3625 PSI (250 bar) |
Material: | Rubber |
Mating Fitting Series: | 43, 30 |
UOM: | FT |
Hose Category: | Hydraulic Industry Standard |
Application: | Hydraulic |
Series: | 381 |
Hose Pressure Range: | Medium |
Inch/Metric: | Inch |
Working Pressure Range: | 3000 to 3999 PSI (207 to 276 bar) |
Inner Diameter Inch/mm: | Inch |
Mating End Fitting Series: | 43, 30 |
Parker Division: | Hose Products |
Parker Group: | Fluid Connector |
Specification: | Type AT - ISO 1436 Type 2AT EN 853 Type 2SN |
Application: | Hydraulic |
Specific Application: | Petroleum base hydraulic fluids and lubricating oils |
Part Number Tags: | N/A |
