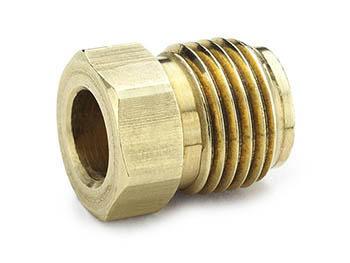

Part #: 41IFF-6 | Manufacturer: Parker |
Price/UOM :
$17.21
|
Availability : Backordered |
UOM: EA |
Description: |
Parker 45° inverted flare fittings meet the functional requirements of SAE J512 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
|
Outer Diameter 1: | 3/8 Inch |
Thread 1: | 5/8-18 UN/UNF |
Material: | Brass |
UOM: | EA |
Series: | 45° Inverted Flare |
Configuration Type: | Auxiliary |
Configuration Sub-Type: | Nut |
Outer Diameter 1 Inch/mm: | Inch |
Inch/Metric: | Inch |
Thread 1 Type: | UN/UNF |
Operating Temperature: | -65°F to +250°F |
Parker Division: | Fluid Systems Connector (Brass Products) |
Parker Group: | Fluid Connector |
SAE Compliance: | J512 |
SAE Reference: | SAE 040110 |
Pressure Rating: | 1000 PSI |
Part Number Tags: | N/A |
