*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.

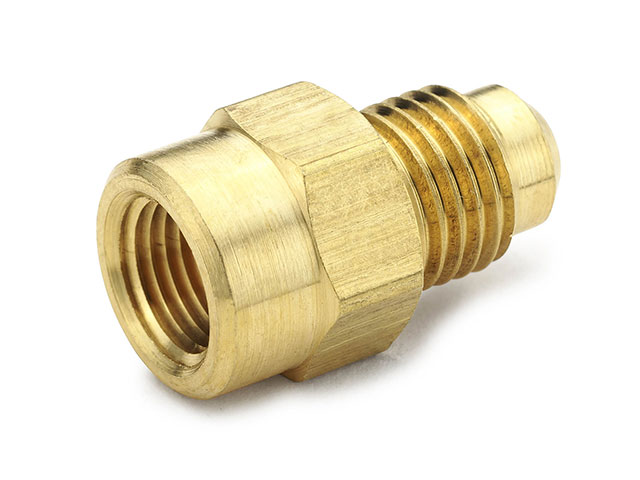

| Part #: 46F-8-6 | Manufacturer: Parker |
|
Price/UOM :
$6.76
|
Availability : 633 In Stock |
| UOM: EA |
| Description: |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
|
| Outer Diameter 1: | 1/2 Inch |
| Thread 1: | 3/4-16 UN/UNF |
| Thread 2: | 3/8 NPT |
| Material: | Brass |
| UOM: | EA |
| Series: | 45° Flare |
| Configuration Type: | Flare to Female |
| Configuration Sub-Type: | Female Connector |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 1 Type: | UN/UNF |
| Thread 2 Type: | NPT |
| Operating Temperature: | -65°F to +250°F |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Parker Group: | Fluid Connector |
| SAE Compliance: | J512 and J513 |
| SAE Reference: | SAE 010103 |
| Pressure Rating: | 750 PSI |
| Part Number Tags: | N/A |
