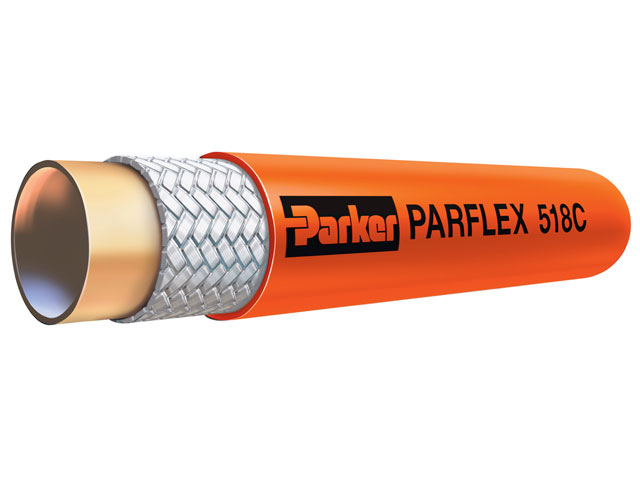

Part #: 518C-6 | Manufacturer: Parker |
Price/UOM :
$5.64
|
Availability : 1101 In Stock |
UOM: FT |
Description: |
Non-Conductive Hose SEA J517 ANSI A92.2Medium pressure hydraulic service where both field attachable and permanent hydraulic circuit exposure and contact with high voltage may be encountered.
|
Inner Diameter: | 0.375 Inch |
Working Pressure: | 3000 PSI (210 bar) |
Material: | Thermoplastic |
Mating Fitting Series: | 55, 51 |
UOM: | FT |
Application: | Hydraulic |
Series: | 518C |
Hose Pressure Range: | Medium |
Inch/Metric: | Inch |
Distinct Properties: | Non-conductive |
Working Pressure Range: | 3000 to 3999 PSI (207 to 276 bar) |
Inner Diameter Inch/mm: | Inch |
Parker Division: | Parflex |
Parker Group: | Fluid Connector |
Specification: | SAE 100R7 |
Part Number Tags: | N/A |
