*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.

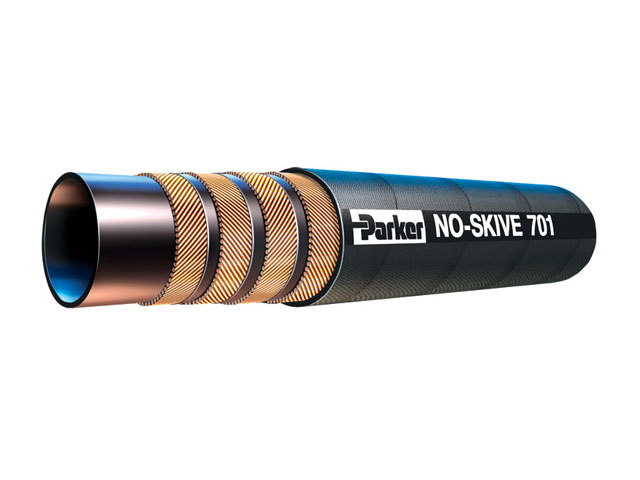

Part #: 701-10 | Manufacturer: Parker |
Price/UOM :
$38.41
|
Availability : Backordered |
UOM: FT |
Description: |
Hi pressure hydraulic hose for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Synthetic rubber. Reinforcement: Four braids steel wire. Cover: Synthetic rubber.
|
Inner Diameter: | 0.625 Inch |
Working Pressure: | 5000 PSI (340 bar) |
Material: | Rubber |
UOM: | FT |
Hose Category: | Hydraulic Industry Standard |
Application: | Hydraulic |
Series: | 701 |
Hose Pressure Range: | High |
Inch/Metric: | Inch |
Working Pressure Range: | > 5000 PSI (345 bar) |
Inner Diameter Inch/mm: | Inch |
Parker Division: | Hose Products |
Parker Group: | Fluid Connector |
Specification: | ISO 3862-1 TYPE 4SP / EN 856 TYPE 4SP |
Application: | Hydraulic |
Specific Application: | Petroleum base hydraulic fluids and lubricating oils |
Part Number Tags: | N/A |
