| Part #: B50-3BP | Manufacturer: Parker |
|
Price/UOM :
$27.34
|
Availability : 240 In Stock |
| UOM: EA |
| Description: |

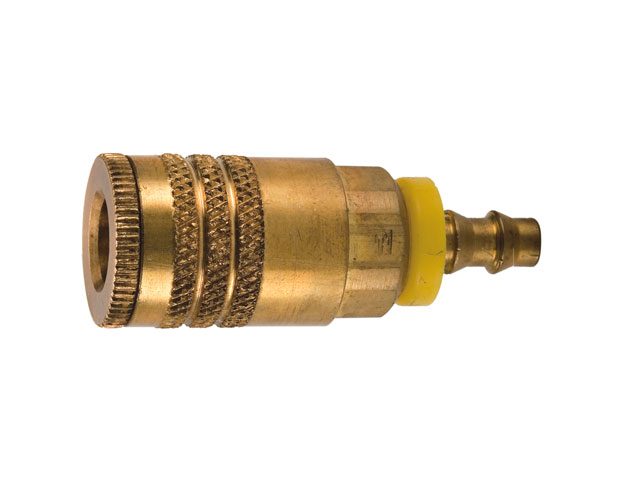

Parker 50 Series Quick Disconnect Couplers are interchangeable with ARO’s 210 series couplings and have a full opening tubular valve for maximum flow and a built-in sleeve guard to minimize accidental disconnect.
|
| Body Size: | 1/4 Inch |
| Inner Diameter: | 0.25 Inch |
| Max Pressure: | 300 PSI (20 bar) |
| Material: | Brass |
| UOM: | EA |
| Quick Coupler Type: | Pneumatic Manual Connect |
| Interchange: | ARO Interchange |
| Application: | Pneumatic |
| Series: | 50 |
| Configuration Type: | Push-lok Hose Barb |
| Max Pressure Range: | 250 to 499 PSI (17 to 34 bar) |
| Inch/Metric: | Inch |
| Coupler/Nipple/Shell: | Coupler |
| Inner Diameter Inch/mm: | Inch |
| Parker Division: | Quick Coupling |
| Parker Group: | Fluid Connector |
| Part Number Tags: | N/A |
