| Part #: HFS204-500 | Manufacturer: Parker |
|
Price/UOM :
$4.93
|
Availability : 1816 In Stock |
| UOM: FT |
| Description: |

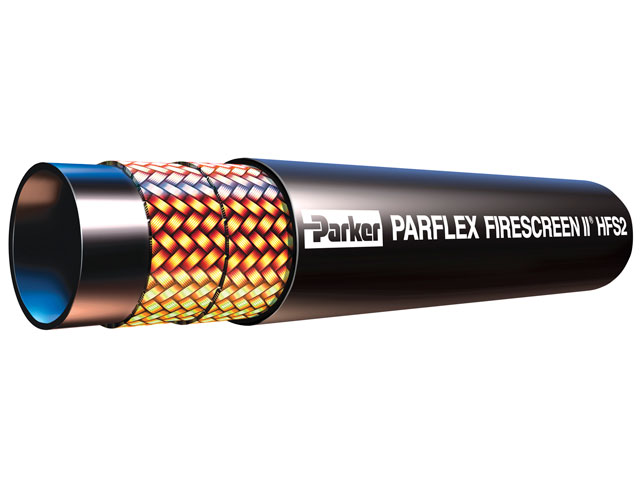

FirescreenII Hybrid Hose SAE 100R16 performance High pressure applications ( similar to 100R2) hydraulic lines on off road construction equipment, machine tools mining equipment and other industrial applications.
|
| Inner Diameter: | 0.25 Inch |
| Working Pressure: | 5000 PSI (340 bar) |
| Material: | Thermoplastic |
| Mating Fitting Series: | HY |
| UOM: | FT |
| Application: | Hydraulic |
| Series: | HFS |
| Hose Pressure Range: | High |
| Inch/Metric: | Inch |
| Distinct Properties: | Constant Pressure 3000 PSI Low Temperature |
| Working Pressure Range: | > 5000 PSI (345 bar) |
| Inner Diameter Inch/mm: | Inch |
| Parker Division: | Parflex |
| Parker Group: | Fluid Connector |
| Specification: | SAE 100R1AT |
| Part Number Tags: | N/A |
