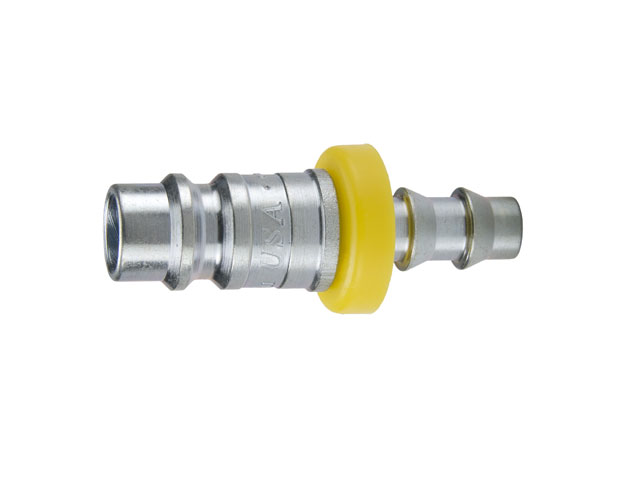

| Part #: RF-254-6PL | Manufacturer: Parker |
|
Price/UOM :
$6.10
|
Availability : 5 In Stock |
| UOM: EA |
| Description: |
Parker RF Series high flow push-to-connect quick disconnect nipple has been designed up to 2-1/2 times larger flow area than standard industrial interchange nipples. RF Series interchanges with a common high-flow European interface.
|
| Body Size: | 1/4 Inch |
| Inner Diameter: | 0.375 Inch |
| Max Pressure: | 300 PSI (20 bar) |
| Material: | Brass |
| UOM: | EA |
| Quick Coupler Type: | Pneumatic Push-to-Connect |
| Interchange: | European High Flow |
| Application: | Pneumatic |
| Series: | RF |
| Configuration Type: | Push-lok Hose Barb |
| Max Pressure Range: | 250 to 499 PSI (17 to 34 bar) |
| Inch/Metric: | Inch |
| Coupler/Nipple/Shell: | Nipple |
| Inner Diameter Inch/mm: | Inch |
| Parker Division: | Quick Coupling |
| Parker Group: | Fluid Connector |
| Part Number Tags: | N/A |
