| Part #: SVH102K30N | Manufacturer: Parker |
|
Price/UOM :
$120.30
|
Availability : Backordered |
| UOM: EA |
| Description: |

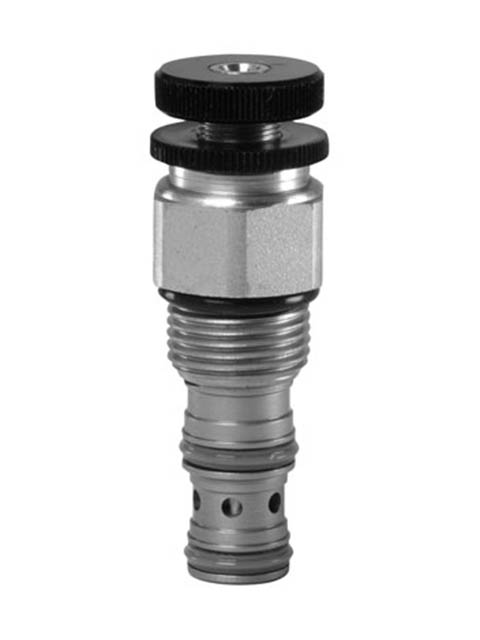

SVH102 Series Sequence Valve - Pilot Operated - External
|
| Rated Flow: | 56.3 LPM (15 GPM) |
| Leakage: | 82 cc/min. (5 cu. in./min.) @ 210 Bar (3000 PSI) |
| Max Pressure: | 380 Bar (5500 PSI) |
| Operating Temperature: | -40C to +93.3C (-40F to +200F) |
| Seals: | Nitrile |
| Pressure Range: | 13.8 - 207 Bar (200 - 3000 PSI) |
| Adjustment Type: | Knob |
| Common Cavity: | Size 10, 3-way |
| Valve Body: | B10-3 |
| UOM: | EA |
| Valve Type: | Sequence Valve |
| Valve Type Detail: | Pilot Operated - External |
| Series: | SVH102 |
| Port: | None - Cartridge Only |
| Common Cavity Type: | Size 10, 3-way |
| Parker Division: | Hydraulic Cartridge Systems |
| Parker Group: | Hydraulic |
| Part Number Tags: | N/A |
