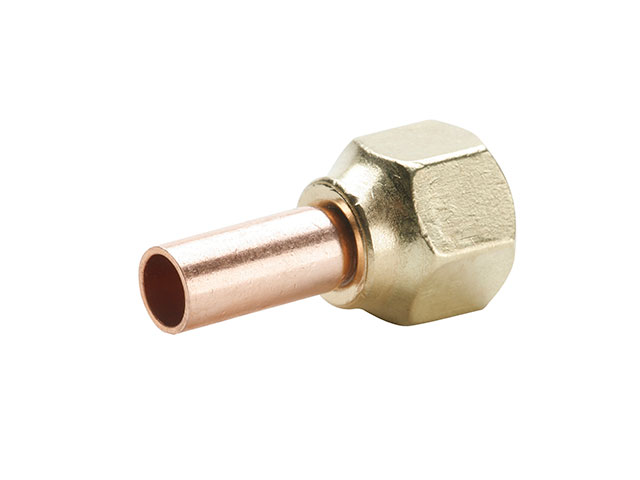

Part #: US5-10 | Manufacturer: Parker |
Price/UOM :
POR
|
Availability : Backordered |
UOM: EA |
Description: |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
|
Outer Diameter 1: | 5/8 Inch |
Thread 1: | 7/8-14 UN/UNF |
Material: | Brass |
UOM: | EA |
Series: | 45° Flare |
Configuration Type: | Flare to Solder |
Configuration Sub-Type: | Adapter |
Outer Diameter 1 Inch/mm: | Inch |
Inch/Metric: | Inch |
Thread 1 Type: | UN/UNF |
Operating Temperature: | -65°F to +250°F |
Parker Division: | Fluid Systems Connector (Brass Products) |
Parker Group: | Fluid Connector |
SAE Compliance: | J512 and J513 |
Pressure Rating: | 650 PSI |
Part Number Tags: | N/A |
