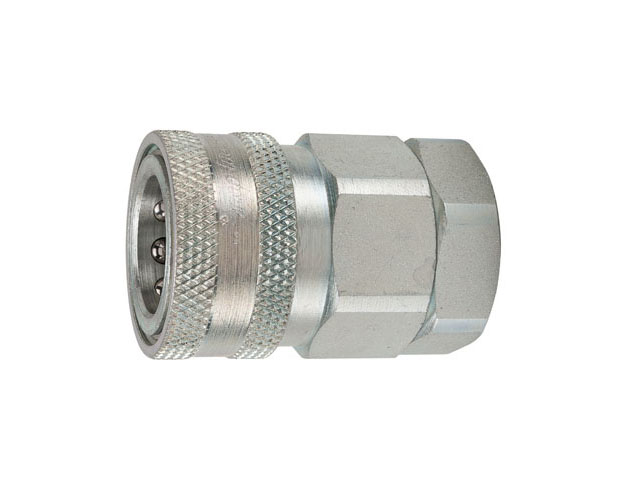

Part #: VPHC6-6F | Manufacturer: Parker |
Price/UOM :
POR
|
Availability : Backordered |
UOM: EA |
Description: |
PH version couplers and nipples are valved with a connect under-pressure features for general purpose fluid applications.
|
Body Size: | 3/8 Inch |
Thread 1: | 3/8 NPT |
Max Pressure: | 4500 PSI (310, bar) |
Material: | Steel |
UOM: | EA |
Quick Coupler Type: | General Purpose Connect Under Pressure |
Application: | Hydraulic |
Trade Name: | Snap-tite |
Series: | PH |
Valved/Non-Valved: | Valved |
Configuration Type: | Female NPTF |
Max Pressure Range: | 4500 PSI (310, bar) |
Inch/Metric: | Inch |
Thread 1 Type: | NPTF |
Coupler/Nipple/Shell: | Coupler |
Parker Division: | Quick Coupling |
Parker Group: | Fluid Connector |
Part Number Tags: | N/A |
